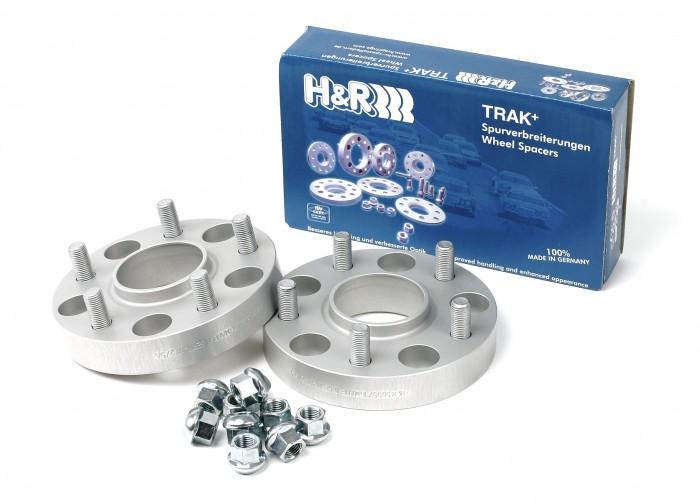

H&R Trak+ 15mm DR Wheel Adaptor Bolt 5/120 Center Bore 72.5 Bolt Thread 12x1.5

All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60 End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).

This Part Fits:

Year	Make	Model	Submodel
2008-2013	BMW	128i	Base
2008-2013	BMW	135i	Base
2013	BMW	135is	Base
1992-1998	BMW	318i	Base
1992-1997	BMW	318is	Base
1995-1998	BMW	318ti	Base
2000	BMW	323Ci	Base
1999-2000	BMW	323i	Base
1999	BMW	323is	Base
2001-2006	BMW	325Ci	Base
1992-1995,2001-2006	BMW	325i	Base
1992-1995	BMW	325is	Base
2001-2006	BMW	325xi	Base
2000	BMW	328Ci	Base
1996-2000,2007-2013	BMW	328i	Base
1996-1999	BMW	328is	Base
2007-2008	BMW	328xi	Base
2001-2006	BMW	330Ci	Base
2001-2006	BMW	330i	Base
2001-2006	BMW	330xi	Base
2009-2011	BMW	335d	Base
2007-2013	BMW	335i	Base
2011-2013	BMW	335is	Base
2007-2008	BMW	335xi	Base
1990-1995,2004-2007	BMW	525i	Base
1993	BMW	525iT	Base
2006-2007	BMW	525xi	Base
1982-1988	BMW	528e	Base
2008-2016	BMW	528i	Base
2009-2010,2012-2016	BMW	528i xDrive	Base
1994-1995,2004-2007	BMW	530i	Base
2006-2007	BMW	530xi	Base
2014-2016	BMW	535d	Base
2014-2016	BMW	535d xDrive	Base
1985-1993,2008-2016	BMW	535i	Base
2010-2016	BMW	535i GT	Base
2011-2016	BMW	535i GT xDrive	Base
2009-2016	BMW	535i xDrive	Base
1988	BMW	535is	Base
2008	BMW	535xi	Base
1994-1995	BMW	540i	Base
2004-2005	BMW	545i	Base
2006-2016	BMW	550i	Base
2010-2015	BMW	550i GT	Base
2010-2016	BMW	550i GT xDrive	Base
2011-2016	BMW	550i xDrive	Base
1983-1984	BMW	633CSi	Base
1985-1989	BMW	635CSi	Base
2012-2018	BMW	640i	Base
2014-2018	BMW	640i xDrive	Base
2004-2005	BMW	645Ci	Base
2006-2010,2012-2018	BMW	650i	Base
2012-2018	BMW	650i xDrive	Base
1983-1984	BMW	733i	Base
1988-1992	BMW	735i	Base
1989-1992	BMW	735iL	Base
1993-1995,1997-2001,2011-2015	BMW	740i	Base
1993-2001	BMW	740iL	Base
2011-2015	BMW	740Li	Base
2013-2015	BMW	740Li xDrive	Base
2002-2005	BMW	745i	Base
2002-2005	BMW	745Li	Base
2011-2012	BMW	750i	ActiveHybrid
2006-2015	BMW	750i	Base
2010-2015	BMW	750i xDrive	Base
1988-1994,1997-2001	BMW	750iL	Base
2011-2012	BMW	750Li	ActiveHybrid
2006-2015	BMW	750Li	Base
2010-2015	BMW	750Li xDrive	Base
2004-2006	BMW	760i	Base
2003-2006,2010-2015	BMW	760Li	Base
1994-1997	BMW	840Ci	Base
1993-1997	BMW	850Ci	Base
1991-1992	BMW	850i	Base
1988-1991,1995-1999,2001-2006,2008-2013	BMW	M3	Base
1995	BMW	M3	Lightweight
1991-1993,2006-2010	BMW	M5	Base
2006-2010	BMW	M6	Base
2013-2015	BMW	X1	sDrive28i
2013-2015	BMW	X1	xDrive28i
2013-2015	BMW	X1	xDrive35i
2004-2005	BMW	X3	2.5i
2004-2006	BMW	X3	3.0i
2007-2008	BMW	X3	3.0si
2015-2017	BMW	X3	sDrive28i
2015-2017	BMW	X3	xDrive28d
2011-2017	BMW	X3	xDrive28i
2009-2010	BMW	X3	xDrive30i
2011-2017	BMW	X3	xDrive35i
2016-2018	BMW	X4	M40i
2015-2018	BMW	X4	xDrive28i
2015-2016	BMW	X4	xDrive35i
2001-2006	BMW	X5	3.0i
2000-2006	BMW	X5	4.4i
2002-2003	BMW	X5	4.6is
2004-2006	BMW	X5	4.8is
2010-2013	BMW	X5	M
2010	BMW	X5	xDrive30i
2010-2013	BMW	X5	xDrive35d
2011-2013	BMW	X5	xDrive35i
2010	BMW	X5	xDrive48i
2011-2013	BMW	X5	xDrive50i
2010-2011	BMW	X6	ActiveHybrid
2010-2014	BMW	X6	M
2008-2014	BMW	X6	xDrive35i
2008-2014	BMW	X6	xDrive50i
1999-2002	BMW	Z3	Coupe
1999-2002	BMW	Z3	M Coupe
1998-2002	BMW	Z3	M Roadster
1996-2002	BMW	Z3	Roadster
2003-2005	BMW	Z4	2.5i
2003-2005	BMW	Z4	3.0i
2006-2008	BMW	Z4	Coupe 3.0si
2006-2008	BMW	Z4	M Coupe
2006-2008	BMW	Z4	M Roadster
2006-2008	BMW	Z4	Roadster 3.0i
2006-2008	BMW	Z4	Roadster 3.0si
2012-2016	BMW	Z4	sDrive28i
2009-2011	BMW	Z4	sDrive30i
2009-2016	BMW	Z4	sDrive35i
2011-2016	BMW	Z4	sDrive35is
2003	BMW	Z8	Alpina
2000-2003	BMW	Z8	Base
2011-2016	Mini	Cooper Countryman	Base
2013-2016	Mini	Cooper Countryman	John Cooper Works ALL4
2011-2016	Mini	Cooper Countryman	S
2011-2016	Mini	Cooper Countryman	S ALL4
